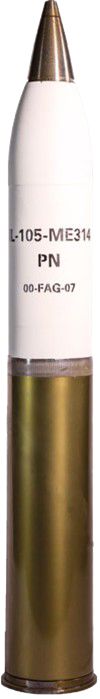

105 ILLUM, M314A3 USE
Used for signalling or illuminating a designated area. WEAPON SYSTEM
105 mm howitzers, M52 and M52A1 (M49 gun); M101 and M101A1 (M2A1 and M2A2 guns); M108 (M103 gun) and M56 Pack Howitzer.
105 MM HOWITZER AMMUNITION PROJECTILE
Type Illuminating Length
(mm) 460 Mass
(kg) 14.8 Expelling charge-Black powder
(kg) 0.06 Illuminating canister:
Average luminosity (cd) > 450,000 Average time luminosity
(s) > 50
ROUND COMPONENTS
Case (type/material) M14 / Brass
Primer Percussion
Fuze MTSQ Propelling
charge Single base powder
PRESENTATION OF THE PRODUCT
Units per package 2 Packaging dimensions
(mm)..................922x307x195 Complete packaging weight (kg) 55 Pallet
dimensions 24 units (mm) 1210x950x930 Full pallet weight
(kg) 860
BALLISTIC DATA
Approximate maximum range (m) 11,270
TEMPERATURE LIMITS
Storage / Transport (oC) .. -54 / +62 Use
(oC)....................................................................... -40 / +62
