Technical Specifications
|
Caliber, mm |
73 |
|
Max Firing Range, m |
4500 |
|
Weight of the Round, kg |
5.48 |
|
Weight of the Grenade, kg |
3.68 |
|
Muzzle Velocity, m/s |
316 |
|
Fire Rate, Shots/min |
Up to 6 |
|
Bursting Charge, type |
TNT |
|
Bursting Charge, Weight, kg |
0.655 |
|
Operational Temperature Range, C The Round Consists: |
From Minus 40 to 50 |
|
Fuze |
AF71 |
|

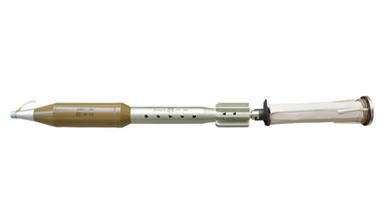

High- Explosive Fragmentation Grenade |
GHEF-9MA |
|
Propellant Charge |
CP-92 |
Packing
6 Rounds are packed in a wooden case as follows:6 Grenades GHEF-9MA (each one in airtight plastic bag) and 6 Propellant Charges (each one in a plastic containers).
Casing
|
Wooden Case |
|
|
Dimensions, mm |
1 065x525x305 |
|
Weight, kg |
64 |
|
Volume, m3 |
0.17 |
